Purelure Nutop Saltwater Spinning Reel – Slow Pitch Jigging | 12–16kg Drag | Size 3000–5000SW

The Purelure Nutop is a metal-bodied saltwater spinning reel built for slow pitch jigging and heavy inshore applications where drag power, build durability and a lower gear ratio for retrieve torque are the priorities over lightweight. 5.2:1 gear ratio, 8+1 bearings, 12kg to 16kg maximum drag depending on size. Three saltwater-rated sizes: 3000SW, 4000SW and 5000SW. $279.95.

Purelure Reel Range — Nutop vs Yannic

• Yannic (135g) — carbon fibre ultralight reel for finesse lure fishing; 6.2:1 gear ratio; sizes 800–2500; bream, trout, estuary perch and light estuary lure fishing; the lightest reel in the Purelure range
• Nutop (277–332g) — metal-bodied saltwater reel for slow pitch jigging and heavy inshore; 5.2:1 power ratio; 12–16kg max drag; sizes 3000–5000SW; kingfish, snapper, amberjack and offshore jigging species; built for power and saltwater durability over weight

Why 5.2:1 for Slow Pitch Jigging

Slow pitch jigging uses a lower gear ratio than standard lure fishing deliberately. The technique involves lifting the rod to pitch the jig upward and then allowing the reel to recover line as the rod drops and the jig flutters back down on a semi-slack line. The flutter on the drop is where most slow pitch strikes occur. A lower gear ratio (5.2:1 vs a standard 6.0–6.4:1) provides more cranking torque per handle turn, which is critical when retrieving heavy jigs (80–200g range) from depth in current — the extra mechanical advantage reduces arm fatigue and maintains consistent jig action through the retrieve on long drops to 50–100m depths. A high-speed reel (6.0:1+) in the same situation provides less torque per turn and requires more physical effort to maintain the same retrieve speed against the water resistance of a heavy jig at depth.

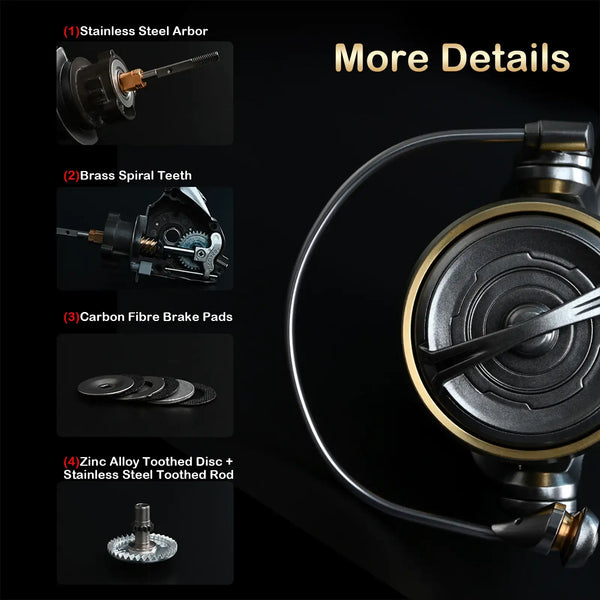

Internal Construction

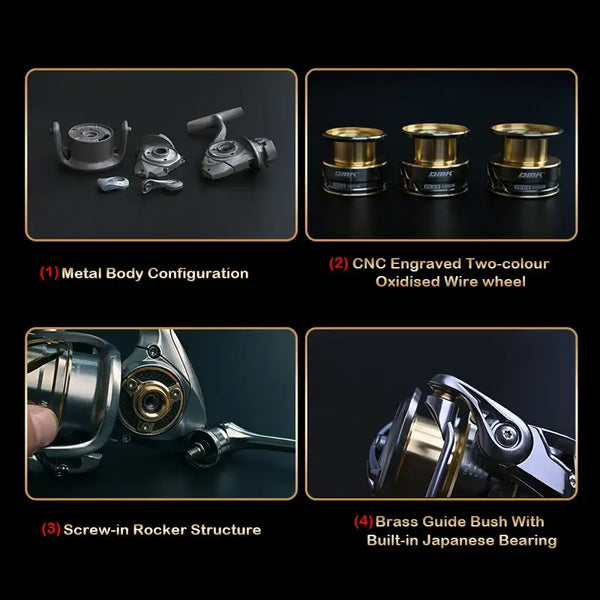

• Metal body — full metal (not carbon fibre) construction for maximum structural rigidity under the high drag loads generated by large pelagic fish; metal body maintains gear alignment under sustained high drag pressure that would flex a lighter carbon or graphite composite body
• Brass spiral gear teeth — brass spiral gear teeth on the main and pinion gears for smooth power transmission and wear resistance; the spiral tooth profile distributes load across a wider contact surface than straight-cut teeth
• Brass guide bush with Japanese bearing — brass bush supporting the line roller bearing position; Japanese bearing specification for consistent line roller smoothness
• Carbon fibre drag pads — carbon fibre drag washers produce consistent, smooth drag pressure across the full adjustment range; carbon fibre drag pads have better heat dissipation than felt or standard composite pads, maintaining consistent drag pressure during long runs from large fish
• 8+1 bearings — 8 ball bearings plus one roller bearing for smooth retrieve and anti-reverse support
• Stainless steel arbor and drag rod — stainless steel in the core drag components for corrosion resistance in a saltwater environment; the stainless drag rod maintains dimensional stability under high drag load and saltwater exposure

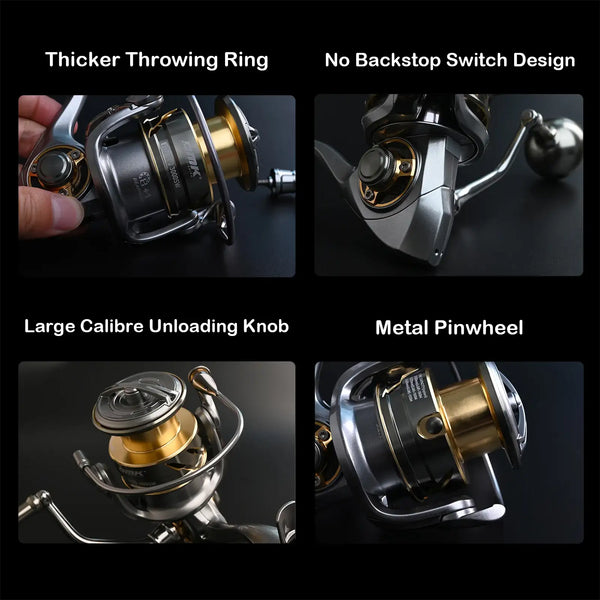

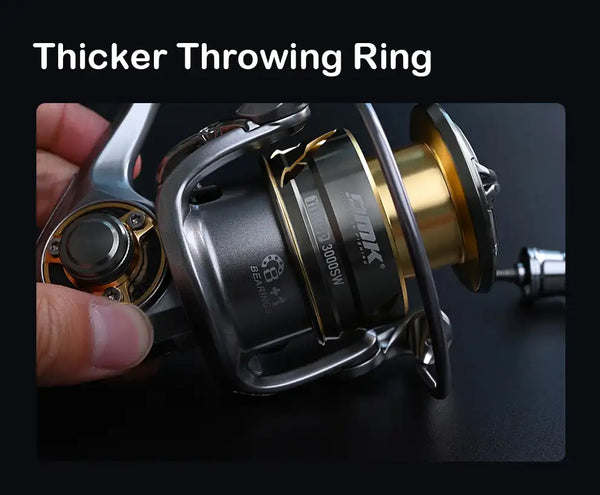

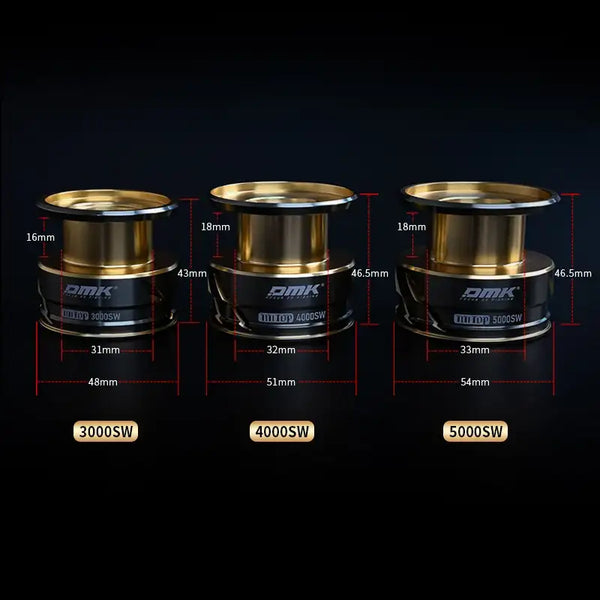

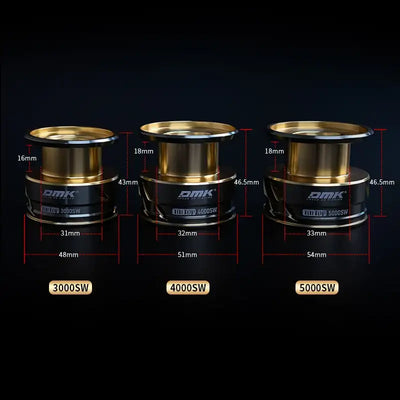

• CNC machined two-colour oxidised spool — CNC engraved two-colour anodised wire spool with a thicker throwing ring (bail wire) for reduced line cutting and improved line release on the cast

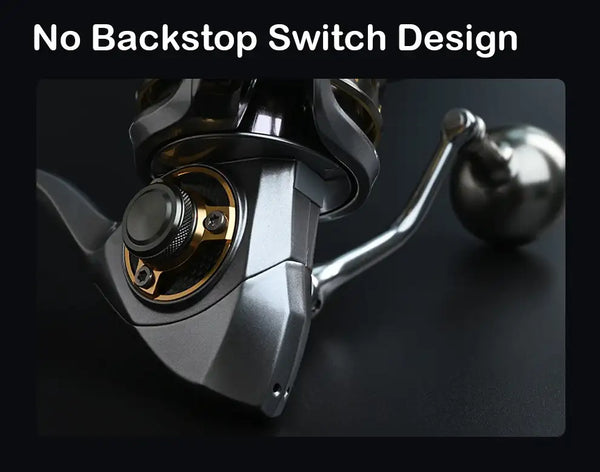

• No anti-reverse switch — no backstop switch means the anti-reverse is always engaged; eliminates the risk of the anti-reverse switch accidentally disengaging during the fight with a powerful fish

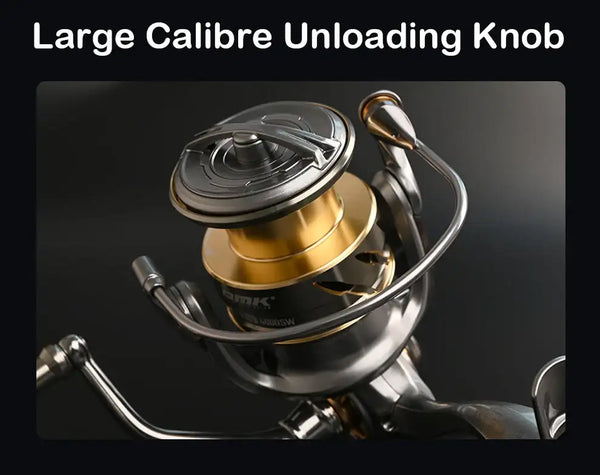

• Large diameter drag knob — oversized drag adjustment knob for precise drag setting with gloved or wet hands during the fight

Line Capacity

• 3000SW — Max drag 12kg / Weight 277g / Retrieve 73cm per turn
  PE #2.5 (0.260mm) — 180m / PE #3.0 (0.285mm) — 150m / PE #3.5 (0.310mm) — 120m
• 4000SW — Max drag 12kg / Weight 321g / Retrieve 77cm per turn
  PE #3.5 (0.310mm) — 180m / PE #4.0 (0.330mm) — 150m / PE #4.5 (0.350mm) — 120m
• 5000SW — Max drag 16kg / Weight 332g / Retrieve 83cm per turn
  PE #4.0 (0.330mm) — 180m / PE #5.0 (0.370mm) — 150m / PE #6.0 (0.405mm) — 120m

Size Guide

• 3000SW — lighter inshore jigging; snapper, kingfish and amberjack to 10kg on PE #2.5–#3.0 braid; suits medium jigging rods in shallower offshore and deeper inshore reefs
• 4000SW — medium offshore; kingfish, amberjack and larger snapper on PE #3.5–#4.0 braid; the most versatile size for general slow pitch jigging to 60–80m
• 5000SW — heavy offshore; large kingfish, amberjack and GT on PE #4.0–#5.0 braid; 16kg max drag for sustained fights with powerful pelagics from 60–100m depth

Specifications

• Brand: Purelure
• Model: Nutop
• Gear ratio: 5.2:1
• Bearings: 8+1
• Body: Metal
• Drag system: Carbon fibre pads, zinc alloy disc, stainless steel rod
• Max drag: 12kg (3000SW, 4000SW) / 16kg (5000SW)
• Weight: 277g (3000SW) / 321g (4000SW) / 332g (5000SW)

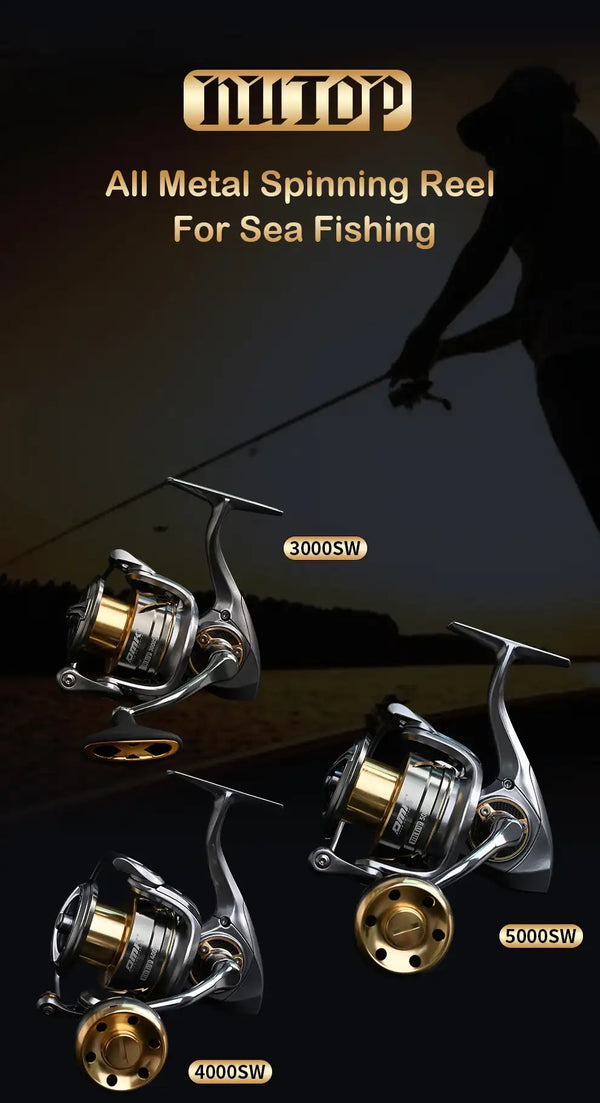

• Sizes: 3000SW, 4000SW, 5000SW
• Anti-reverse switch: None (always engaged)
• Hand: Left/right convertible
